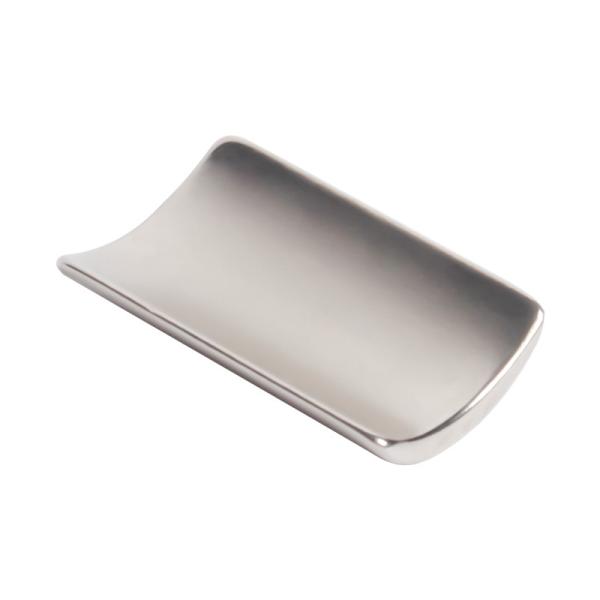

Neodymium Arc N50 Magnets

Ask Lasest Price
Brand Name :	UNMAG
Price :	As negotiation
Delivery Time :	20-25days
Payment Terms :	T/T L/C
Supply Ability :	100 tons per month for NdFeB magnet

Add to Cart

Product Details
Company Profile

Neodymium Arc N50 Magnets

Product Description:

Sintered Neodymium Magnet is a type of high-performance magnet made of neodymium, a magnetic alloy compound. It is manufactured through a process known as powder metallurgy, which involves the compression of magnetic powder into a desired shape. This method gives the magnet a high pull force, making it ideal for use in various applications. In addition, it also has a high corrosion resistance, making it suitable for use in harsh environments. Despite the high performance, the price of the sintered neodymium magnet is quite reasonable, making it a great choice for many different projects.

Magnetic Properties of Sintered Neodymium Magnet

Grade		Remanence		Coercivity		Intrinsic Coercivity		Max Energy Product		Working Temp
Grade		(Br)		(HcB)		(HcJ)		(BH)max		Tw
		KGs	T	KOe	KA/m	KOe	KA/m	MGOe	KJ/m³	℃
N Series	N35	11.7-12.2	1.17-1.22	≥10.9	≥868	≥12	≥955	33-36	263-287	≤80
	N38	12.2-12.5	1.22-1.25	≥11.3	≥899	≥12	≥955	36-39	287-310	≤80
	N40	12.5-12.8	1.25-1.28	≥11.4	≥907	≥12	≥955	38-41	302-326	≤80
	N42	12.8-13.2	1.28-1.32	≥11.5	≥915	≥12	≥955	40-43	318-342	≤80
	N45	13.2-13.8	1.32-1.38	≥11.6	≥923	≥12	≥955	43-46	342-366	≤80
	N48	13.8-14.2	1.38-1.42	≥11.6	≥923	≥12	≥955	46-49	366-390	≤80
	N50	14.0-14.5	1.40-1.45	≥10.0	≥796	≥11	≥876	48-51	382-406	≤60
	N52	14.3-14.8	1.43-1.48	≥10.0	≥796	≥11	≥876	50-53	398-422	≤60
M Series	35M	11.7-12.2	1.17-1.22	≥10.9	≥868	≥14	≥1114	33-36	263-287	≤100
	38M	12.2-12.5	1.22-1.25	≥11.3	≥899	≥14	≥1114	36-39	287-310	≤100
	40M	12.5-12.8	1.25-1.28	≥11.6	≥923	≥14	≥1114	38-40	302-326	≤100
	42M	12.8-13.2	1.28-1.32	≥12.0	≥955	≥14	≥1114	40-43	318-342	≤100
	45M	13.2-13.8	1.32-1.38	≥12.5	≥955	≥14	≥1114	43-46	342-366	≤100
	48M	13.6-14.3	1.36-1.43	≥12.9	≥1027	≥14	≥1114	46-49	366-390	≤100
	50M	14.0-14.5	1.40-1.45	≥13.0	≥1033	≥14	≥1114	48-51	382-406	≤100
	52M	14.3-14.8	1.43-1.48	≥13.0	≥995	≥14	≥1114	50-52	398-414	≤100
H Series	33H	11.3-11.7	1.13-1.17	≥10.6	≥844	≥17	≥1353	31-34	263-287	≤120
	35H	11.7-12.2	1.17-1.21	≥10.9	≥869	≥17	≥1353	33-36	263-287	≤120
	38H	12.2-12.5	1.22-1.25	≥11.3	≥899	≥17	≥1353	36-39	287-310	≤120
	40H	12.5-12.8	1.25-1.28	≥11.6	≥923	≥17	≥1353	38-41	302-326	≤120
	42H	12.8-13.2	1.28-1.32	≥12.0	≥955	≥17	≥1353	40-43	318-342	≤120
	45H	13.0-13.6	1.30-1.36	≥12.1	≥963	≥17	≥1353	43-46	326-358	≤120
	48H	13.7-14.3	1.37-1.43	≥12.5	≥955	≥17	≥1274	46-49	366-390	≤120
SH Series	30SH	10.8-11.3	1.08-1.13	≥10.1	≥804	≥20	≥1592	28-31	233-247	≤150
	33SH	11.3-11.7	1.13-1.17	≥10.6	≥844	≥20	≥1592	31-34	247-271	≤150
	35SH	11.7-12.2	1.17-1.22	≥11.0	≥876	≥20	≥1592	33-36	263-287	≤150
	38SH	12.2-12.5	1.22-1.25	≥11.4	≥907	≥20	≥1592	36-39	287-310	≤150
	40SH	12.5-12.8	1.25-1.28	≥11.8	≥939	≥20	≥1592	38-41	302-326	≤150
	42SH	12.8-13.2	1.28-1.32	≥12.4	≥987	≥20	≥1592	40-43	318-342	≤150
	45SH	13.2-13.8	1.32-1.38	≥12.6	≥1003	≥20	≥1592	43-46	342-366	≤150
	48SH	13.7-14.3	1.37-1.43	≥12.6	≥1003	≥20	≥1592	46-49	366-390	≤150
UH Series	30UH	10.8-11.3	1.08-1.13	≥10.2	≥812	≥25	≥1990	28-31	223-247	≤180
	33UH	11.3-11.7	1.13-1.17	≥10.7	≥852	≥25	≥1990	31-34	247-271	≤180
	35UH	11.7-12.2	1.17-1.22	≥10.8	≥860	≥25	≥1990	33-36	263-287	≤180
	38UH	12.2-12.5	1.22-1.25	≥11.0	≥876	≥25	≥1990	36-39	287-310	≤180
	40UH	12.4-12.8	1.24-1.28	≥11.3	≥915	≥25	≥1990	38-41	302-326	≤180
	42UH	12.8-13.2	1.28-1.32	≥11.3	≥971	≥25	≥1990	40-43	318-342	≤180
EH Series	30EH	10.8-11.3	1.08-1.13	≥10.2	≥812	≥30	≥2388	28-31	223-247	≤200
	33EH	11.3-11.7	1.13-1.17	≥10.5	≥836	≥30	≥2388	31-34	247-271	≤200
	35EH	11.7-12.2	1.17-1.22	≥11.0	≥876	≥30	≥2388	33-36	263-287	≤200
	38EH	12.2-12.5	1.22-1.25	≥11.3	≥899	≥30	≥2388	36-39	287-310	≤200
AH Series	30AH	10.2-10.8	1.02-1.08	≥10.1	≥804	≥35	≥2706	28-30	223-247	≤220
	33AH	11.4-11.7	1.14-1.17	≥10.6	≥844	≥35	≥2706	31-33	247-263	≤220
	35AH	11.7-12.1	1.17-1.21	≥10.9	≥876	≥35	≥2706	33-36	263-279	≤220

Features:

Product Name: Sintered Neodymium Magnet
Size: Customized
Magnetic Performance: Stable
Shape: Any size
Material: Neodymium-Iron-Boron (NdFeB), a Magnetic Alloy Compound
Pull Force: High
Magnetic Orientation: Multi-polar

Technical Parameters:

Property	Description
Magnetic Performance	Stable
Temperature Resistance	High
Grade	N35-N52
Coating	Nickel
Application	Widely Used
Corrosion Resistance	High
Magnetic Flux Density	High
Size	Customized
Shape	Any size
Pull Force	High

Applications:

Introducing UNMAG Sintered Neodymium Magnet

UNMAG Sintered Neodymium Magnet is a powder-metallurgy magnet with high performance, manufactured through the process of powder metallurgy. It offers a wide range of grades from N35 to N52, as well as high magnetic flux density, reasonable price, and multi-polar magnetic orientation. UNMAG sintered neodymium magnet is widely used in many different applications.

UNMAG sintered neodymium magnet is the ideal choice for applications such as motors, sensors, actuators, power tools, generators, wind turbines, electric vehicles, and consumer electronics. It is also ideal for medical devices, automotive components and other industrial applications. It is highly durable and can withstand extreme temperatures and harsh environments, making it perfect for applications in extreme conditions.

UNMAG sintered neodymium magnet is also a great choice for use in educational and scientific experiments. It can be used to build models, create prototypes, and explore the principles of magnetism. It is also an ideal choice for building materials, such as magnets for furniture, door locks, and decorative items. Its versatility makes it a great choice for any application.

UNMAG sintered neodymium magnet is a reliable and cost-effective choice for any application. Its high performance and wide range of grades make it an ideal choice for all types of projects. With its reasonable price and excellent magnetic properties, UNMAG sintered neodymium magnet is the perfect choice for any application.

Customization:

UNMAG Sintered Neodymium Magnet, originating from China, is made of high-performance Neodymium-Iron-Boron Magnetic-Alloy-Compound. It is produced by Powder-Metallurgy-Magnet process and its magnetic field strength is high. In addition, it also has excellent corrosion resistance. The reasonable price and customizable size make it an ideal choice for your applications.

Support and Services:

Technical Support and Service for Sintered Neodymium Magnet

We provide professional technical support and service for our customers who purchase Sintered Neodymium Magnet. Our technical support staff has extensive knowledge and experience on the product. We provide a wide range of services, including:

Answering inquiries about the product
Providing instruction manuals or troubleshooting guides
Assisting with installation and setup
Providing online or telephone support
Providing replacement parts or components
Providing warranty information and repair services

We are committed to providing our customers with the best possible technical support and service for their Sintered Neodymium Magnet. If you have any questions or concerns, please do not hesitate to contact us.

Packing and Shipping:

Sintered Neodymium Magnet Packaging and Shipping:

Sintered Neodymium Magnets are typically shipped in double boxes with internal bracing to prevent shifting and protect against damage during shipping. The exterior boxes are constructed of either corrugated cardboard or plastic, depending on the size and weight of the product. The interior box should be lined with bubble wrap, foam padding, or other cushioning material to provide additional protection. Where applicable, magnets should be individually wrapped in plastic to prevent them from sticking to each other or other items in the box.
