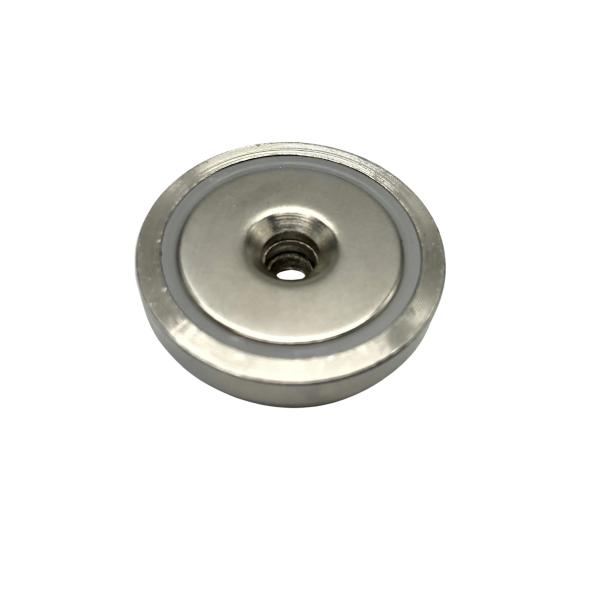

Neodymium Countersunk Pot Magnet -20℃~80℃ For Industrial
Applications
Product Description:
Our Pot Neodymium Magnet is a powerful NdFeB mounting magnet made
from neodymium iron boron. Its pull force is strong enough to keep
items secure even in harsh environments. The working temperature of
this product ranges from -20℃ to 80℃, and it comes with a disc
shape. Each piece of the magnet is carefully packed in a carton box
to ensure safe delivery. We provide a minimum order quantity of 100
pieces, so you can get the right amount for your projects.
Features:
- Product Name: Pot Neodymium Magnet
- Tolerance: ±0.1mm
- Size: Customized
- MOQ: 100 Pieces
- Packaging: Carton Box
- Pull Force: High
- Designed for: Neodymium Pot Magnets, Pot Magnet, Shallow Pot Magnet
Technical Parameters:
| Model | D (Mm) | D1 (Mm) | D2 (Mm) | H (Mm) | Hole Degree | Strength (Kg) |
| UN-A16 | 16 | 3.5 | 6.5 | 5 | 90° | 5 |
| UN-A20 | 20 | 4.5 | 8.6 | 7 | 90° | 6 |
| UN-A25 | 25 | 5.5 | 10.5 | 8 | 90° | 14 |
| UN-A32 | 32 | 5.5 | 10.5 | 8 | 90° | 25 |
| UN-A36 | 36 | 6.5 | 12 | 9 | 90° | 29 |
| UN-A42 | 42 | 6.5 | 12 | 9 | 90° | 37 |
| UN-A48 | 48 | 8.5 | 16 | 11.5 | 90° | 68 |
| UN-A60 | 60 | 8.5 | 16 | 15 | 90° | 112 |
| UN-A75 | 75 | 10.5 | 20 | 18 | 90° | 162 |
| UN-A90 | 90 | 10.5 | 20 | 18 | 90° | 300 |
| UN-A120 | 120 | 12.5 | 20.5 | 18 | 90° | 600 |
Applications:
UNMAG Neodymium Pot Magnets are the perfect solution for mounting,
holding and lifting applications. Manufactured with high quality
Neodymium magnet material, these pot magnets provide superior hold
strength and are ideal for a variety of applications. With a wide
range of sizes, shapes and pull force, these NdFeB mounting magnets
offer powerful magnetic solutions for a wide range of applications.
UNMAG Neodymium Pot Magnets are designed with a unique pot shape
that allows a strong magnetic force to be concentrated on one side.
The holding force can be further increased by adding a steel plate
to the magnetic surface. These magnets are also available in a wide
range of sizes and shapes, including discs, cylinders, and blocks.
With a pull force up to 100lbs, these magnets are strong enough to
be used for heavy-duty purposes.
UNMAG Neodymium Pot Magnets offer excellent magnetic direction with
strong magnetic field along the thickness and axial direction. With
a superior magnetic performance, these pot magnets are well suited
for many applications such as lifting, holding, and mounting
materials, making them ideal for use in industrial, commercial, and
residential settings. The magnets can also be customized to fit
your specific requirements and can be produced in a variety of
shapes, sizes, and pull forces.
Customization:
Customized NdFeB Mounting Magnet, Neodymium Hook, Rare Earth Pot
Magnets
- Brand Name: UNMAG
- Place of Origin: China
- Shape: Disc
- Grade: N35-N52
- Pull Force: High
- Packaging: Carton Box
- MOQ: 100 Pieces
Support and Services:
Pot Neodymium Magnet Technical Support and Service
We provide technical support and services for Pot Neodymium Magnet.
If you have any questions or inquiries related to the product, our
team of qualified professionals will be able to assist you. They
can provide you with technical advice and answer any questions you
may have about the product.
We also offer a warranty on all Pot Neodymium Magnet products. If
you experience any issues with the product, our warranty covers any
defects in material or workmanship. Our team of experts will be
able to assist you in resolving the issue quickly.
We strive to ensure our customers are satisfied with our products
and services. If you have any further questions or concerns, please
do not hesitate to contact us.
