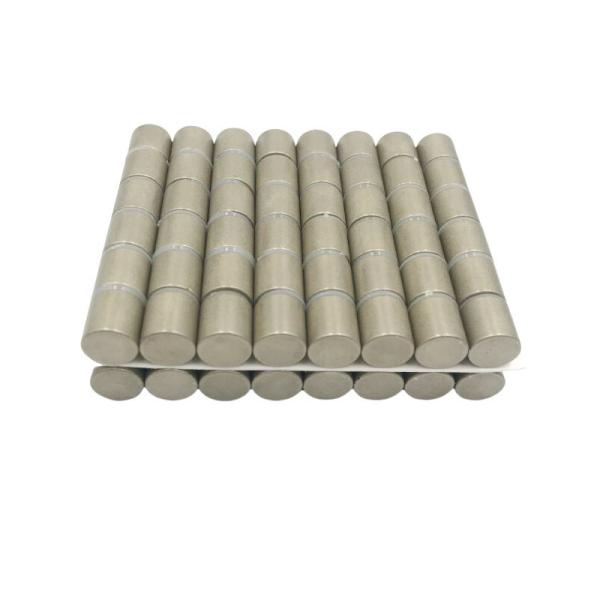

Cylinder Smco Sensors Magnets For Sensor Industry
Product Description:
Samarium Cobalt Magnet is a kind of high performance rare earth permanent magnet made of
Samarium and Cobalt. It is a hard and brittle material, and is
widely used in ring magnets, SmCo magnets, SmCo2 magnets, and other
samarium cobalt magnets. It has the advantages of high-temperature
resistance, corrosion resistance, good magnetic properties and good
magnetic stability. Samarium Cobalt Magnets are available in
various grades, including YXG-26H, YXG-30H, YXG-28, YXG-30, YXG-32.
They are widely used in various applications, such as spaceflight,
national defense, microwave, sensors, etc. The magnetization
methods are through axial, thickness or customized, and the coating
can be uncoated or customized. They offer excellent performance and
reliability.
Features:
- Product Name: Samarium Cobalt Magnet
- Operating Temperature: 250-500°C
- Magnetization: Through Axial,Thickness Or Customized
- Grade: YXG-26H, YXG-30H, YXG-28, YXG-30, YXG-32
- Material: Samarium Cobalt (Sm2Co17)
- Coating: Uncoated
- Shape: Ring Magnets Smco Magnet, Smco Disc Magnets
Magnetic Properites Of SmCo Magnet:
| Grade | Remanence
(Br) | Coercivity
(Hcb) | Intrinsic Coercivity
(Hcj) |  Max Energy Product
(BH)max
| Curie Temperature
(TC) | Max Work Temp
(TW) | Temperature Coefficient of Br
(Br) | Temperature Coefficient of Hcj
(Hcj) |
| T | kGS | kA/m | KOe | KA/m | KOe | KJ/m3 | MGOe | ℃ | ℃ | %℃ | %℃ |
| YX-16s | 0.79-0.84 | 7.9-8.4 | 620-660 | 7.8-8.3 | ≥1830 | ≥23 | 118-135 | 15-17 | 750 | 250 | -0.035 | -0.28 |
| YX-18s | 0.84-0.89 | 8.4-8.9 | 660-700 | 8.3-8.8 | ≥1830 | ≥23 | 135-151 | 17-19 | 750 | 250 | -0.040 | -0.28 |
| YX-20s | 0.89-0.93 | 8.9-9.3 | 684-732 | 8.6-9.2 | ≥1830 | ≥23 | 150-167 | 19-21 | 750 | 250 | -0.045 | -0.28 |
| YX-22s | 0.92-0.96 | 9.2-9.6 | 710-756 | 8.9-9.5 | ≥1830 | ≥23 | 167-183 | 21-23 | 750 | 250 | -0.045 | -0.28 |
| YX-24s | 0.96-1.00 | 9.6-10.0 | 740-788 | 9.3-9.9 | ≥1830 | ≥23 | 183-199 | 23-25 | 750 | 250 | -0.045 | -0.28 |
| LTc(YX-10) | 0.62-0.66 | 6.2-6.6 | 485-517 | 6.1-6.5 | ≥1830 | ≥23 | 75-88 | 9.5-11 | 750 | 300 | Temp Range | Br Temp Coefficient％℃ |
|
| | | | | | | | | | | 20-100℃ | +0.0156％℃ |
| | | | | | | | | | | 100-200℃ | +0.0087％℃ |
| | | | | | | | | | | 200-300℃ | +0.0007％℃ |
| YX-12 | 0.70-0.74 | 7.0-7.4 | 358-390 | 4.5-4.9 | 358-478 | 4.5-6 | 80-103 | 10-13 | 450 | 200 | | |
| YXG-24H | 0.95-1.02 | 9.5-10.2 | 692-764 | 8.7-9.6 | ≥1990 | ≥25 | 175-191 | 22-24 | 800 | 350 | -0.025 | -0.20 |
| YXG-26H | 1.02-1.05 | 10.2-10.5 | 748-796 | 9.4-10.0 | ≥1990 | ≥25 | 191-207 | 24-26 | 800 | 350 | -0.030 | -0.20 |
| YXG-28H | 1.03-1.08 | 10.3-10.8 | 756-812 | 9.5-10.2 | ≥1990 | ≥25 | 207-220 | 26-28 | 800 | 350 | -0.035 | -0.20 |
| YXG-30H | 1.08-1.10 | 10.8-11.0 | 788-835 | 9.9-10.5 | ≥1990 | ≥25 | 220-240 | 28-30 | 800 | 350 | -0.035 | -0.20 |
| YXG-32H | 1.10-1.13 | 11.0-11.3 | 812-860 | 10.2-10.8 | ≥1990 | ≥25 | 230-255 | 29-32 | 800 | 350 | -0.035 | -0.20 |
| YXG-22 | 0.93-0.97 | 9.3-9.7 | 676-740 | 8.5-9.3 | ≥1433 | ≥18 | 160-183 | 20-23 | 800 | 300 | -0.020 | -0.20 |
| YXG-24 | 0.95-1.02 | 9.5-10.2 | 692-764 | 8.7-9.6 | ≥1433 | ≥18 | 175-191 | 22-24 | 800 | 300 | -0.025 | -0.20 |
| YXG-26 | 1.02-1.05 | 10.2-10.5 | 748-796 | 9.4-10.0 | ≥1433 | ≥18 | 191-207 | 24-26 | 800 | 300 | -0.030 | -0.20 |
| YXG-28 | 1.03-1.08 | 10.3-10.8 | 756-812 | 9.5-10.2 | ≥1433 | ≥18 | 207-220 | 26-28 | 800 | 300 | -0.035 | -0.20 |
| YXG-30 | 1.08-1.10 | 10.8-11.0 | 788-835 | 9.9-10.5 | ≥1433 | ≥18 | 220-240 | 28-30 | 800 | 300 | -0.035 | -0.20 |
| YXG-32 | 1.10-1.13 | 11.0-11.3 | 812-860 | 10.2-10.8 | ≥1433 | ≥18 | 230-255 | 29-32 | 800 | 300 | -0.035 | -0.20 |
| YXG-26M | 1.02-1.05 | 10.2-10.5 | 676-780 | 8.5-9.8 | 955-1433 | 12-18 | 191-207 | 24-26 | 800 | 300 | -0.035 | -0.20 |
| YXG-28M | 1.03-1.08 | 10.3-10.8 | 676-796 | 8.5-10.0 | 955-1433 | 12-18 | 207-220 | 26-28 | 800 | 300 | -0.035 | -0.20 |
| YXG-30M | 1.08-1.10 | 10.8-11.0 | 676-835 | 8.5-10.5 | 955-1433 | 12-18 | 220-240 | 28-30 | 800 | 300 | -0.035 | -0.20 |
| YXG-32M | 1.10-1.13 | 11.0-11.3 | 676-852 | 8.5-10.7 | 955-1433 | 12-18 | 230-255 | 29-32 | 800 | 300 | -0.035 | -0.20 |
| YXG-24L | 0.95-1.02 | 9.5-10.2 | 541-716 | 6.8-9.0 | 636-955 | 8-12 | 175-191 | 22-24 | 800 | 250 | -0.025 | -0.20 |
| YXG-26L | 1.02-1.05 | 10.2-10.5 | 541-748 | 6.8-9.4 | 636-955 | 8-12 | 191-207 | 24-26 | 800 | 250 | -0.035 | -0.20 |
| YXG-28L | 1.03-1.08 | 10.3-10.8 | 541-764 | 6.8-9.6 | 636-955 | 8-12 | 207-220 | 26-28 | 800 | 250 | -0.035 | -0.20 |
| YXG-30L | 1.08-1.15 | 10.8-11.5 | 541-796 | 6.8-10.0 | 636-955 | 8-12 | 220-240 | 28-30 | 800 | 250 | -0.035 | -0.20 |
| YXG-32L | 1.10-1.15 | 11.0-11.5 | 541-812 | 6.8-10.2 | 636-955 | 8-12 | 230-255 | 29-32 | 800 | 250 | -0.035 | -0.20 |
| LTC(YXG-22) | 0.94-0.98 | 9.4-9.8 | 668-716 | 8.4-9.0 | ≥1433 | ≥18 | 167-183 | 21-23 | 840 | 300 | Temp Range | Br Temp Coefficient％℃ |
| | | | | | | | | | | –50-25℃ | ﹢0.005％℃ |
| | | | | | | | | | | 20-100℃ | -0.008％℃ |
| | | | | | | | | | | 100-200℃ | -0.008％℃ |
| | | | | | | | | | | 200-300℃ | -0.011％℃ |
Physical Properties Of SmCo Magnet:
| Parameter Name | Unit | SmCo5 | Sm2Co17 |
| Density | g/cm³ | 8.2 ~ 8.4 | 8.3 ~ 8.5 |
| Curie Temperature | ℃ | 700 ~ 750 | 800 ~ 850 |
| Max. Operating Temperature 250 350 | ℃ | 250 | 350 |
| Temperature Coefficient Of Br -0.05 -0.03 | %/℃ | -0.05 | -0.03 |
| Vickers Hardness 450 ~ 500 550 ~600 | HV | 450 ~ 500 | 550 ~600 |
| Electronic Ressistivity | Ω.cm | 5 ~ 6 x 10(-5) | 8 ~ 9 x 10(-5) |
| Thermal Conductivity | W/mK | 12 | 13 |
Applications:
UNMAG Samarium Cobalt Magnets are made of Sm2Co17 material, which
have a higher maximum energy product than other rare-earth magnets.
These powerful magnets can be magnetized through axial, thickness
or customized, and the grade can be YXG-26H, YXG-30H, YXG-28,
YXG-30 and YXG-32. They are uncoated and have a wide operating
temperature range from 250 to 500°C. All UNMAG Samarium Cobalt
Magnets are manufactured in China, and the delivery time is
typically 25 to 30 days.
UNMAG Samarium Cobalt Magnets are widely used in a variety of
applications, such as motors, sensors, generators, medical
equipment, automotive components, aerospace components and many
other electronic components. They are also widely used in renewable
energy, nuclear magnetic resonance imaging, magnetic levitation,
radar systems, wind turbines and other industries. UNMAG Samarium
Cobalt Magnets are highly reliable and perform well even in extreme
environments.
Customization:
UNMAG Samarium Cobalt Magnet
UNMAG Samarium Cobalt Magnet is the perfect solution for
Spaceflight, National Defense, Microwave, Sensors and other
applications. It is made of SmCo (Samarium Cobalt) material and is
available in a variety of grades, including YXG-26H, YXG-30H,
YXG-28, YXG-30, YXG-32. Magnetization can be done through axial,
thickness or customized. It is uncoated and comes from China with a
delivery time of 25-30 days.
If you are looking for a reliable SmCo Magnet or SmCo Samarium
Cobalt Magnet, UNMAG is the perfect choice!
Packing and Shipping:
Packaging and Shipping of Samarium Cobalt Magnets
Samarium Cobalt Magnets are shipped in a sealed package to ensure
they remain in good condition. The package is designed to protect
the magnets from possible damage during shipping. The package must
be opened carefully and all safety precautions must be followed
when handling the magnets.
All Samarium Cobalt Magnets are shipped with tracking numbers.
Customers will be able to track their order from the time it is
placed until it is delivered. This helps to ensure that the magnets
are safely delivered to the customer.
We take great care to ensure that all Samarium Cobalt Magnets are
safely and securely packaged and shipped. We have an experienced
team of professionals who are dedicated to making sure that all
orders are delivered on time and in good condition.
