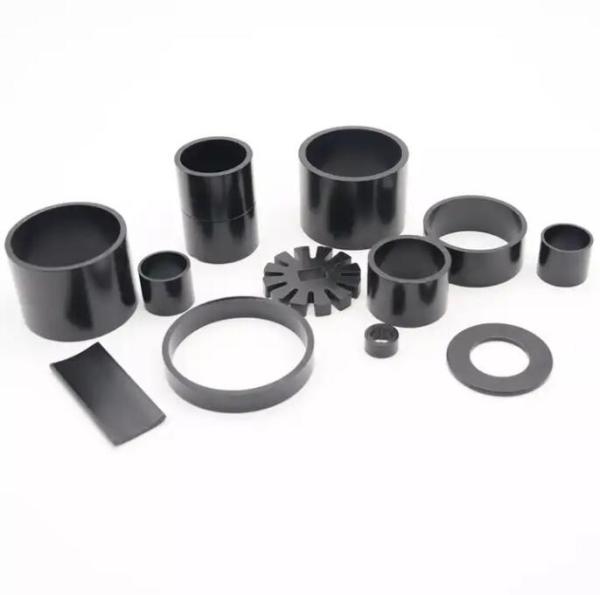

Product Description:
Bonded Neodymium Magnet is a unique type of multi-pole ring magnet
specially designed for high-precision applications. It is available
in a wide range of grades, including BN-4, BN-6, BN-8, BN-10, and
BN-12L, and can be packaged in various forms, such as carton boxes
and pallets. With a maximum operating temperature of 120°C-150°C
and magnetization directions of axial, radial, and multi-poles, the
Bonded Neodymium Magnet is an ideal choice for numerous
applications, particularly those requiring a 12-pole magnet.
Features:
Advantages
Compression Bonded:
Higher Magnetic Strength due to higher magnetic particle density.
Epoxy Binder / Resistant to normal industrial solvents and
automotive fluids
Epoxy Coat after manufacturing to prevent oxidation
Temperature Range -40c – 180c
“Tight” tolerances off tool
Good mechanical strength
Disadvantages
Requires tooling and mold costs
Piece price will be low only in high volume
Low magnetic properties
Technical Parameters:
| Grade | Unit | BN-2 | BN-4 | BN-6 | BN-8L | BN-8 | BN-8SR | BN-10 | BN-10H | BN-12 | BN-12L | BN-13L |
Remanence
(Br) | (mT) | 300-400 | 400-500 | 500-600 | 600-650 | 630-680 | 620-680 | 680-730 | 700-750 | 720-770 | 760-810 | 780-830 |
Max. Energy Product
(Hcb) | (KA/m) | 240-320 | 240-320 | 320-400 | 360-440 | 400-480 | 400-480 | 400-480 | 440-520 | 440-520 | 400-480 | 400-480 |
| (KOe) | (3.0-4.0) | (3.0-4.0) | (4.0-5.0) | (4.5-5.5) | (5.0-6.0) | (5.0-6.0) | (5.0-6.0) | (4.5-6.5) | (5.5-6.5) | (5.0-6.0) | (5.0-6.0) |
Max. Energy Product
(Hcj) | (KA/m) | 480-640 | 560-720 | 560-720 | 640-800 | 640-800 | 880-1120 | 640-800 | 640-800 | 720-800 | 480-640 | 480-640 |
| (KOe) | (6.0-8.0) | (7.0-9.0) | (7.0-9.0) | (8.0-10.0) | (8.0-10.0) | (11.0-14.0) | (8.0-10.0) | (8.0-10.0) | (9.0-10.0) | (6.0-8.0) | (6.0-8.0) |
Max. Energy Product
(BH max) | (KJ/m3) | 24-32 | 32-44 | 52-60 | 60-68 | 68-76 | 68-76 | 76-84 | 80-88 | 88-96 | 88-96 | 88-104 |
| (MGOe) | (3.0-4.0) | (4.0-5.5) | (6.5-7.5) | (7.5-8.5) | (8.5-9.5) | (8.5-9.5) | (9.5-10.5) | (10.0-11.0) | (11.0-12.0) | (11.0-12.0) | (11.0-13.0) |
Recoil Permeability
(ur) | (μ H/M) | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 |
| Tempetrature Coefficient | (%/℃) | -0.11 | -0.11 | -0.11 | -0.11 | -0.11 | -0.1 | -0.1 | -0.1 | -0.1 | -0.12 | -0.12 |
Curie Temperature
(Tc) | (℃) | 300 | 300 | 300 | 300 | 350 | 350 | 350 | 350 | 350 | 320 | 320 |
| Max.Operating Temperature | (℃) | 160 | 160 | 160 | 160 | 160 | 180 | 160 | 160 | 160 | 150 | 150 |
| Max. Energy Product | (KA/m) | >1600 | >1600 | >1600 | >1600 | >1600 | >3000 | >1600 | >1600 | >1600 | >1600 | >1600 |
| (KOe) | >20 | >20 | >20 | >20 | >20 | >25 | >20 | >20 | >20 | >20 | >20 |
Density
(ρ) | (g/cm3) | 4.5-5.0 | 5.0-5.5 | 5.5-6.0 | 5.8-6.0 | 5.8-6.1 | 5.8-6.1 | 5.8-6.1 | 6.0-6.3 | 6.0-6.3 | 6.0-6.3 | 6.1-6.4 |
| Hardness | HRB | 40-45 | 40-45 | 40-45 | 35-38 | 35-38 | 35-38 | 35-38 | 35-38 | 35-38 | 35-38 | 35-38 |
Applications:
UNMAG Bonded Neodymium Magnets are made of high-performance NdFeB
alloy powder and are available in BN-4, BN-6, BN-8, BN-10, and
BN-12L grades, providing strong magnetic performance. The magnets
are also coated with epoxy, nickel, and parylene for added
protection, making them suitable for a variety of applications,
such as spinder motors, stepping motors, synchronous motors, DC
motors, brushless motors, and neodymium magnet rings with 8 poles.
UNMAG Bonded Neodymium Magnets are incredibly powerful and have the
ability to hold up to twenty times their own weight. They are also
highly resistant to corrosion and wear and tear, making them
suitable for long-term use. Additionally, the magnets are
incredibly versatile, and can be used for a variety of
applications, such as in multi-pole ring magnets, robots, and for
aerospace applications.
UNMAG Bonded Neodymium Magnets are produced with the highest
quality standards and are backed by a 25-30 day delivery time. With
the highest level of performance and durability, UNMAG Bonded
Neodymium Magnets are the perfect choice for all your magnetic
needs!
Customization:
Bonded Neodymium Magnet is a kind of permanent magnet produced with
injection-molding technology, which is strong, durable and stable
in performance. UNMAG is the leading supplier of bonded neodymium
magnets in China, and offers a wide range of grades, shapes, sizes
and magnetization directions to meet your needs.
Brand Name: UNMAG
Place of Origin: China
Delivery Time: 25-30days
Grade: BN-4, BN-6, BN-8, BN-10, BN-12L
Shape: Disc, Block, Cylinder, Ring, Etc.
Magnetization Direction: Axial, Radial, Multi-poles
Size: Customized
Packaging: Carton Box, Pallet, Etc.
Our bonded neodymium magnets are mainly used in automobiles,
machines, electrical appliances, medical equipment, and other
fields. We guarantee that all our bonded NdFeB magnets meet the
highest quality standards and provide reliable performance.
Packing and Shipping:
Packaging and Shipping
Bonded Neodymium Magnets are packaged and shipped with great care
to ensure their safe arrival at the customer's destination. The
magnets are securely sealed in an air-tight plastic pouch to
protect them from dust or other environmental elements. The pouch
is then placed inside a strong cardboard box and surrounded by foam
for additional cushioning. The box is labeled with the customer's
address and shipped via an insured courier service to the customer.
