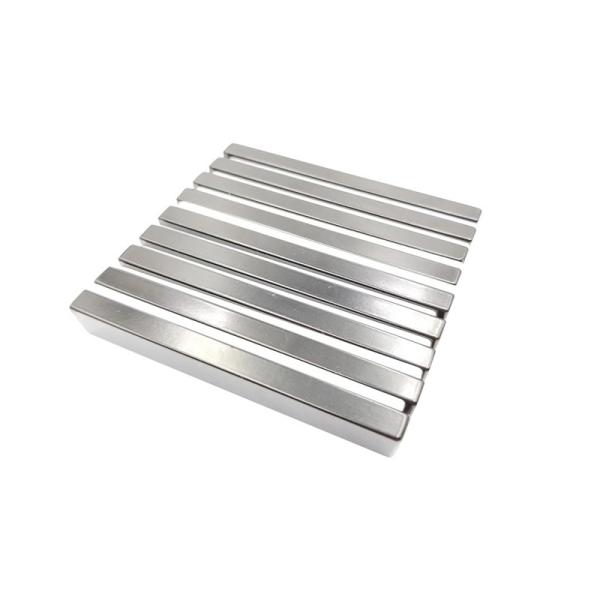

Customized High Flux Density Sintered Neodymium Magnet For Magnetic
Orientation
Product Description:
Sintered Neodymium Magnet is a kind of Magnetic-Alloy-Compound made
of Neodymium-Iron-Boron-Alloy. It has the highest energy product
among all permanent magnets available in the market, making it the
most widely used and popular rare earth magnet today. It has a wide
range of Grade from N35 to N52, with stable magnetic performance
and customized shape. In addition, the sintered neodymium magnet
are widely used in new energy cars, wind power generation, servo
motors and traction motors, and they also come with coatings of
Nickel, Zinc and Epoxy. All of these features make the sintered
neodymium magnet an ideal choice for many applications.
Features:
- Product Name: Sintered Neodymium Magnet
- Material: Neodymium-Iron-Boron (NdFeB)
- Size: Customized
- Price: Reasonable
- Shape: Customized
- Magnetic Orientation: Axial,Multi-polar,As Customization
- Magnetic Field Strength: High
- Performance: High-Performance-Magnet
Magnetic Properties of Sintered Neodymium Magnet:
| Grade | Remanence | Coercivity | Intrinsic Coercivity | Max Energy Product | Working Temp |
| (Br) | (HcB) | (HcJ) | (BH)max | Tw |
| | | KGs | T | KOe | KA/m | KOe | KA/m | MGOe | KJ/m³ | ℃ |
N
Series | N35 | 11.7-12.2 | 1.17-1.22 | ≥10.9 | ≥868 | ≥12 | ≥955 | 33-36 | 263-287 | ≤80 |
| N38 | 12.2-12.5 | 1.22-1.25 | ≥11.3 | ≥899 | ≥12 | ≥955 | 36-39 | 287-310 | ≤80 |
| N40 | 12.5-12.8 | 1.25-1.28 | ≥11.4 | ≥907 | ≥12 | ≥955 | 38-41 | 302-326 | ≤80 |
| N42 | 12.8-13.2 | 1.28-1.32 | ≥11.5 | ≥915 | ≥12 | ≥955 | 40-43 | 318-342 | ≤80 |
| N45 | 13.2-13.8 | 1.32-1.38 | ≥11.6 | ≥923 | ≥12 | ≥955 | 43-46 | 342-366 | ≤80 |
| N48 | 13.8-14.2 | 1.38-1.42 | ≥11.6 | ≥923 | ≥12 | ≥955 | 46-49 | 366-390 | ≤80 |
| N50 | 14.0-14.5 | 1.40-1.45 | ≥10.0 | ≥796 | ≥11 | ≥876 | 48-51 | 382-406 | ≤60 |
| N52 | 14.3-14.8 | 1.43-1.48 | ≥10.0 | ≥796 | ≥11 | ≥876 | 50-53 | 398-422 | ≤60 |
M
Series | 35M | 11.7-12.2 | 1.17-1.22 | ≥10.9 | ≥868 | ≥14 | ≥1114 | 33-36 | 263-287 | ≤100 |
| 38M | 12.2-12.5 | 1.22-1.25 | ≥11.3 | ≥899 | ≥14 | ≥1114 | 36-39 | 287-310 | ≤100 |
| 40M | 12.5-12.8 | 1.25-1.28 | ≥11.6 | ≥923 | ≥14 | ≥1114 | 38-40 | 302-326 | ≤100 |
| 42M | 12.8-13.2 | 1.28-1.32 | ≥12.0 | ≥955 | ≥14 | ≥1114 | 40-43 | 318-342 | ≤100 |
| 45M | 13.2-13.8 | 1.32-1.38 | ≥12.5 | ≥955 | ≥14 | ≥1114 | 43-46 | 342-366 | ≤100 |
| 48M | 13.6-14.3 | 1.36-1.43 | ≥12.9 | ≥1027 | ≥14 | ≥1114 | 46-49 | 366-390 | ≤100 |
| 50M | 14.0-14.5 | 1.40-1.45 | ≥13.0 | ≥1033 | ≥14 | ≥1114 | 48-51 | 382-406 | ≤100 |
| 52M | 14.3-14.8 | 1.43-1.48 | ≥13.0 | ≥995 | ≥14 | ≥1114 | 50-52 | 398-414 | ≤100 |
H
Series | 33H | 11.3-11.7 | 1.13-1.17 | ≥10.6 | ≥844 | ≥17 | ≥1353 | 31-34 | 263-287 | ≤120 |
| 35H | 11.7-12.2 | 1.17-1.21 | ≥10.9 | ≥869 | ≥17 | ≥1353 | 33-36 | 263-287 | ≤120 |
| 38H | 12.2-12.5 | 1.22-1.25 | ≥11.3 | ≥899 | ≥17 | ≥1353 | 36-39 | 287-310 | ≤120 |
| 40H | 12.5-12.8 | 1.25-1.28 | ≥11.6 | ≥923 | ≥17 | ≥1353 | 38-41 | 302-326 | ≤120 |
| 42H | 12.8-13.2 | 1.28-1.32 | ≥12.0 | ≥955 | ≥17 | ≥1353 | 40-43 | 318-342 | ≤120 |
| 45H | 13.0-13.6 | 1.30-1.36 | ≥12.1 | ≥963 | ≥17 | ≥1353 | 43-46 | 326-358 | ≤120 |
| 48H | 13.7-14.3 | 1.37-1.43 | ≥12.5 | ≥955 | ≥17 | ≥1274 | 46-49 | 366-390 | ≤120 |
SH
Series | 30SH | 10.8-11.3 | 1.08-1.13 | ≥10.1 | ≥804 | ≥20 | ≥1592 | 28-31 | 233-247 | ≤150 |
| 33SH | 11.3-11.7 | 1.13-1.17 | ≥10.6 | ≥844 | ≥20 | ≥1592 | 31-34 | 247-271 | ≤150 |
| 35SH | 11.7-12.2 | 1.17-1.22 | ≥11.0 | ≥876 | ≥20 | ≥1592 | 33-36 | 263-287 | ≤150 |
| 38SH | 12.2-12.5 | 1.22-1.25 | ≥11.4 | ≥907 | ≥20 | ≥1592 | 36-39 | 287-310 | ≤150 |
| 40SH | 12.5-12.8 | 1.25-1.28 | ≥11.8 | ≥939 | ≥20 | ≥1592 | 38-41 | 302-326 | ≤150 |
| 42SH | 12.8-13.2 | 1.28-1.32 | ≥12.4 | ≥987 | ≥20 | ≥1592 | 40-43 | 318-342 | ≤150 |
| 45SH | 13.2-13.8 | 1.32-1.38 | ≥12.6 | ≥1003 | ≥20 | ≥1592 | 43-46 | 342-366 | ≤150 |
| 48SH | 13.7-14.3 | 1.37-1.43 | ≥12.6 | ≥1003 | ≥20 | ≥1592 | 46-49 | 366-390 | ≤150 |
UH
Series | 30UH | 10.8-11.3 | 1.08-1.13 | ≥10.2 | ≥812 | ≥25 | ≥1990 | 28-31 | 223-247 | ≤180 |
| 33UH | 11.3-11.7 | 1.13-1.17 | ≥10.7 | ≥852 | ≥25 | ≥1990 | 31-34 | 247-271 | ≤180 |
| 35UH | 11.7-12.2 | 1.17-1.22 | ≥10.8 | ≥860 | ≥25 | ≥1990 | 33-36 | 263-287 | ≤180 |
| 38UH | 12.2-12.5 | 1.22-1.25 | ≥11.0 | ≥876 | ≥25 | ≥1990 | 36-39 | 287-310 | ≤180 |
| 40UH | 12.4-12.8 | 1.24-1.28 | ≥11.3 | ≥915 | ≥25 | ≥1990 | 38-41 | 302-326 | ≤180 |
| 42UH | 12.8-13.2 | 1.28-1.32 | ≥11.3 | ≥971 | ≥25 | ≥1990 | 40-43 | 318-342 | ≤180 |
EH
Series | 30EH | 10.8-11.3 | 1.08-1.13 | ≥10.2 | ≥812 | ≥30 | ≥2388 | 28-31 | 223-247 | ≤200 |
| 33EH | 11.3-11.7 | 1.13-1.17 | ≥10.5 | ≥836 | ≥30 | ≥2388 | 31-34 | 247-271 | ≤200 |
| 35EH | 11.7-12.2 | 1.17-1.22 | ≥11.0 | ≥876 | ≥30 | ≥2388 | 33-36 | 263-287 | ≤200 |
| 38EH | 12.2-12.5 | 1.22-1.25 | ≥11.3 | ≥899 | ≥30 | ≥2388 | 36-39 | 287-310 | ≤200 |
AH
Series | 30AH | 10.2-10.8 | 1.02-1.08 | ≥10.1 | ≥804 | ≥35 | ≥2706 | 28-30 | 223-247 | ≤220 |
| 33AH | 11.4-11.7 | 1.14-1.17 | ≥10.6 | ≥844 | ≥35 | ≥2706 | 31-33 | 247-263 | ≤220 |
| 35AH | 11.7-12.1 | 1.17-1.21 | ≥10.9 | ≥876 | ≥35 | ≥2706 | 33-36 | 263-279 | ≤220 |
Max. working temperature for different grade:
| Grade | Working Temp |
| (L/D=0.7) |
| | | ℃ |
N
Series | N35~N52 | ≤80 |
M
Series | 38M~50M | ≤100 |
H
Series | 35H~48H | ≤120 |
SH
Series | 33SH~48SH | ≤150 |
UH
Series | 30UH~40UH | ≤180 |
EH
Series | 30EH~38EH | ≤200 |
Technical Parameters:
| Property | Value |
|---|
| Temperature Resistance | High |
| Price | Reasonable |
| Magnetic Flux Density | High |
| Magnetic Performance | Stable |
| Shape | Customized |
| Grade | N35-N52 |
| Size | Customized |
| Magnetic Orientation | Axial,Multi-polar,As Customization |
| Coating | Nickel,Zinc,Epoxy |
| Certification | ISO9001, IATF16949, ISO14001 |
| Material | Powder-Metallurgy-Magnet, Powder-Metallurgy-Magnet,
Magnetic-Alloy-Compound |
Applications:
UNMAG Sintered Neodymium Magnet is an ideal choice for a wide range
of applications, due to its high magnetic field strength and
powerful pull force. It is made of Neodymium-Iron-Boron, a type of
alloy that is known for its superior performance. The magnet is
produced through Powder-Metallurgy-Magnet process, which ensures
excellent consistency and stability of its properties. It is
available in various shapes and sizes, and can be customized to
meet specific needs. It is also coated with Nickel, Zinc, or Epoxy
for enhanced corrosion resistance. UNMAG Sintered Neodymium Magnet
is the perfect choice for applications where high magnetic field
strength and powerful pull force are needed.
Other Characteristics:
Tolearance Control
| Name | Dimension(mm) | Tolerance(mm) |
| Wall thickness | T≤10 | ±0.04 |
| 10<T≤30 | ±0.05 |
| 30<T≤50 | ±0.06 |
| Length | L≤10 | ±0.04 |
| 10<L≤30 | ±0.05 |
| 30<T≤50 | ±0.05 |
| L>50 | ±0.08 |
| Width | W>50 | ±0.05 |
| L>50 | W≥50 | ±0.08 |
Available size: L≤200mm,W≤100mm,T: 1.5~50mm,H3~60mm
Customization:
UNMAG offers premium quality sintered neodymium magnets that are
made with Neodymium-Iron-Boron (NdFeB) and sintered neodymium
magnet technology. Our sintered neodymium magnets have a high
magnetic flux density, corrosion resistance and excellent magnetic
performance. They are made with the highest quality neodymium
available and are designed to be used in applications such as new
energy cars, wind power generation, servo motors, and traction
motors.
At UNMAG, we are committed to providing our customers with the best
sintered neodymium magnets available. Our magnets are made in China
and are held to the highest quality standards. We pride ourselves
on providing our customers with magnets that have a high magnetic
flux density, corrosion resistance, and excellent magnetic
performance. Our sintered neodymium magnets are perfect for use in
applications such as new energy cars, wind power generation, servo
motors, and traction motors.
Support and Services:
Technical Support and Service for Sintered Neodymium Magnet
At XYZ, we provide comprehensive support and service for our
sintered neodymium magnet products, including:
- Inspection and testing of our products to ensure that they meet all
quality and safety standards
- Free consultation and advice on how to use our magnets in the most
efficient and cost-effective way
- Ongoing technical support and troubleshooting for any issues that
may arise while using our magnets
- Replacement and repair services for any faulty magnets
- Regular product updates and upgrades
For more information about our support and service, please contact
us through our website or call us at 1-800-555-1212.
